Electronic and Design Integration
Hassaan Hassaan, Liv Sorensen, Karl Andres, Swetha Kandeepan
Feb 2025 - March 2025
Overview

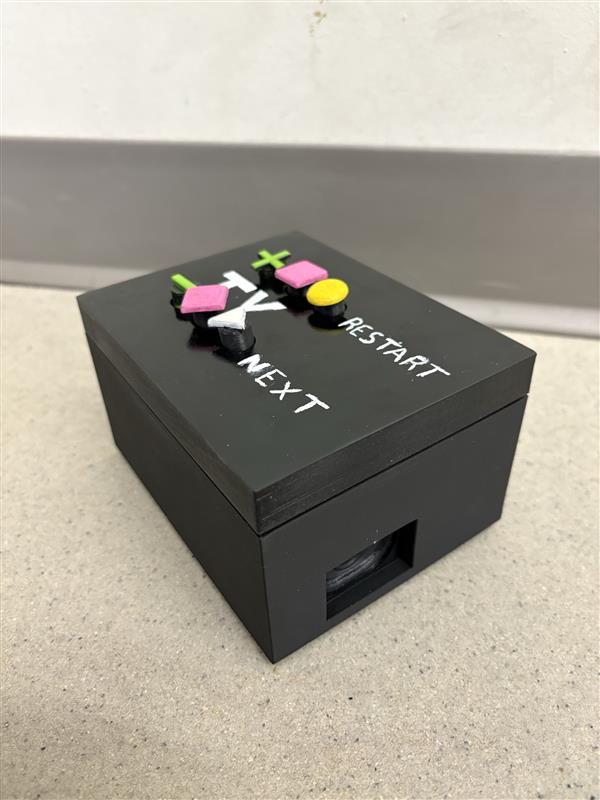

This device was designed to assist my client, who has Usher Syndrome, in playing the guitar without relying on printed music. Because the client has low vision, we created a system that audibly announces each chord to be played. An Arduino paired with a DF‑Player, speaker, and breadboard controls tempo, volume, and play/pause via high‑contrast buttons of distinct shapes. To suit the client’s preferences, the prototype runs from USB power rather than a rechargeable battery. The model includes a HC-05 transceiver module allowing for bluetooth connectivity. Fully functional and user‑friendly, the device enables the client to play guitar independently while prioritizing accessibility. It placed in the top 12 of 250 projects qualifying for the McMaster First‑Year Engineering Showcase.
Key Features
Arduino-Based System: Utilizes an Arduino for controlling functions and integrating various components.
DF-Player and Speaker: Plays audible chord instructions to guide the user in playing guitar chords.
User-Friendly Buttons: High-contrast buttons of different shapes for easy identification and operation.
Functionality Controls: Includes buttons for adjusting tempo, volume, and play/pause.
USB Power: Uses a USB power system for continuous use instead of a rechargeable mechanism.
Fully Functional Prototype: Completed a working prototype tailored to the client's needs for accessibility and ease of use.
Assistive Design: Helps the client play guitar without relying on music sheets, catering to vision challenges associated with Usher Syndrome.
